Tile Showers

Custom tile shower installation in Port Angeles, Sequim, and across the Olympic Peninsula. Tile Services built to TCNA methods, fully waterproofed, finished in porcelain.

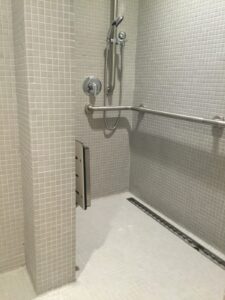

ADA Tile Shower Port Angeles Washington
ADA Tile Shower Port Angeles Washington

A shower fails or succeeds based on what’s behind the tile. The visible surface is the easy part — the substrate, slope, and waterproofing decide whether you get fifty years or five.



Clean Demolition



Tear-out is dirty work, and how it’s done determines what your house looks like when it’s over.

  • Dust containment. Plastic zip walls between the bathroom and living space. HEPA vacuums on tile saws and grinders. Silica dust from old tile and mortar is a respiratory hazard — handled accordingly.
  • Floor and fixture protection. Hardwood, vinyl, and adjacent tile get covered before any demo starts. Toilets, vanities, and trim that aren’t being replaced are wrapped or removed and stored.
  • Down to studs and subfloor. Old tile, mortar bed, backer board, and any failed waterproofing all come out. Framing, blocking, and the subfloor get inspected for rot, mold, or movement before anything new goes back.
  • Haul-off included. Debris leaves with us. No piles in the driveway.

Substrate & Framing

What we find under the old shower often dictates the next steps. Common fixes:

  • Replacing rotted bottom plates or wall studs
  • Adding  blocking for niches, benches, grab bars, and shower doors
  • Sistering joists when the floor flexes — tile won’t tolerate movement
  • Re-sheeting the subfloor when needed before any membrane goes down

Waterproofing

Every tile shower we build is fully waterproofed using proven systems that meet recognized industry standards.

ANSI A118.10 — load-bearing, bonded waterproof membranes for showers and other wet areas. Every membrane we install is rated to this spec or higher.


Bonded Sheet Membrane

Schluter Kerdi — fabric-laminated polyethylene applied with thinset over cement backer or foam board. Predictable, well-documented, easy to inspect.

Liquid-Applied Membrane

Laticrete Hydro Ban or Mapei AquaDefense — roll- or trowel-applied fluid that cures into a continuous waterproof layer. Tight curves, niches, and complex geometry handle well.

Pre-Sloped Foam Pans

Schluter Kerdi-Shower or Wedi systems — factory-built slope under the membrane. Eliminates the old “two mud beds and a clamping drain” stack-up that’s prone to perimeter leaks.

Linear Drains & Curbless

Curbless showers built per TCNA B415, with proper slope, double-pitch where required, and waterproofing carried into the surrounding floor.


Standard curbed showers reference TCNA B421 or B422 depending on substrate. Whichever method we use on your build, it’s specified up front so you know what you’re getting.

Porcelain Tile Showers

We default to porcelain tiles for shower walls and floors — Porcelain is denser, harder, and far less absorbent than ceramic.

  • Rectified porcelain for tight grout joints and a clean modern look
  • Large-format and slab porcelain installed with medium-bed (LHT) mortar and proper coverage to meet TCNA’s 95% bond requirement on wet areas
  • Mosaics for shower floors — small tiles conform to slope and provide footing
  • Through-body porcelain options where chip resistance matters

Natural stone is available on request, with the additional sealing and maintenance schedule it requires.

Reinstallation

After demo, framing fixes, and waterproofing comes the build:

  1. Cement backer board or foam board, fastened per manufacturer spec
  2. Pre-slope and pan installation, drain set to finished tile height
  3. Waterproof membrane — seams, corners, drain flange, and curb fully sealed
  4. 48-hour flood test before tile to confirm the pan holds
  5. Tile layout planned for symmetry, niche centerlines, and minimal cuts at sightlines
  6. Setting in appropriate thin-set with full back-buttering on large format
  7. Stain-resistant grout, color matched to the design
  8. Silicone caulking at all change-of-plane joints

Niches, Benches & Curbs

  • Pre-formed foam niches (Schluter, Wedi) sized to your bottles, sloped at the sill, fully wrapped in membrane
  • Built-in benches with proper slope and waterproofing
  • Curbs wrapped on three sides — top, inside, outside — and tied into the pan membrane

Service Area

Port Angeles, Sequim, Port Townsend, Forks, and the rest of Clallam and Jefferson County.

Estimate

We’ll come look at the space, talk through options, and give you a written estimate with the system and materials specified.
